ADDere Small Format System

A Drop-In Solution for Printing Your Metal Parts

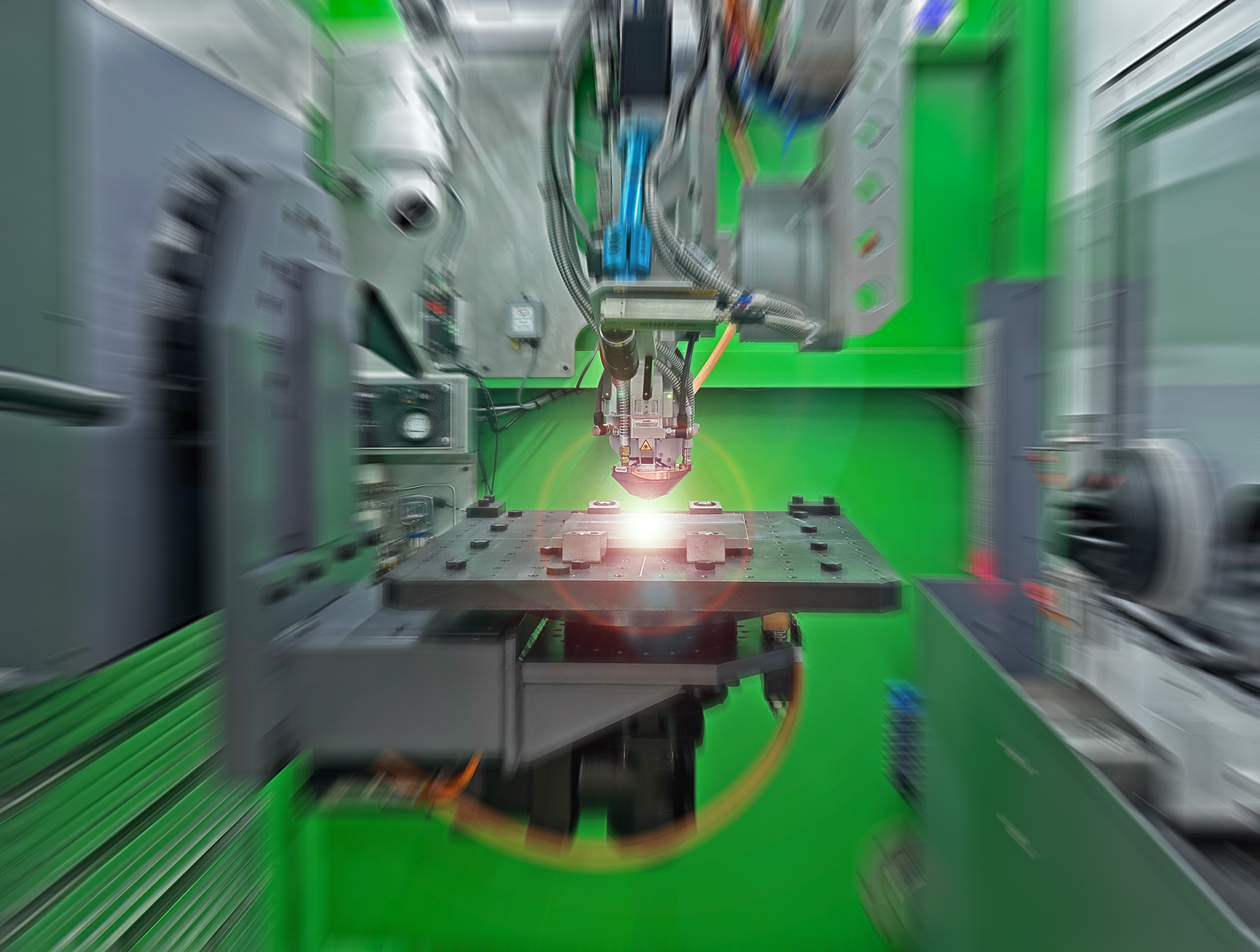

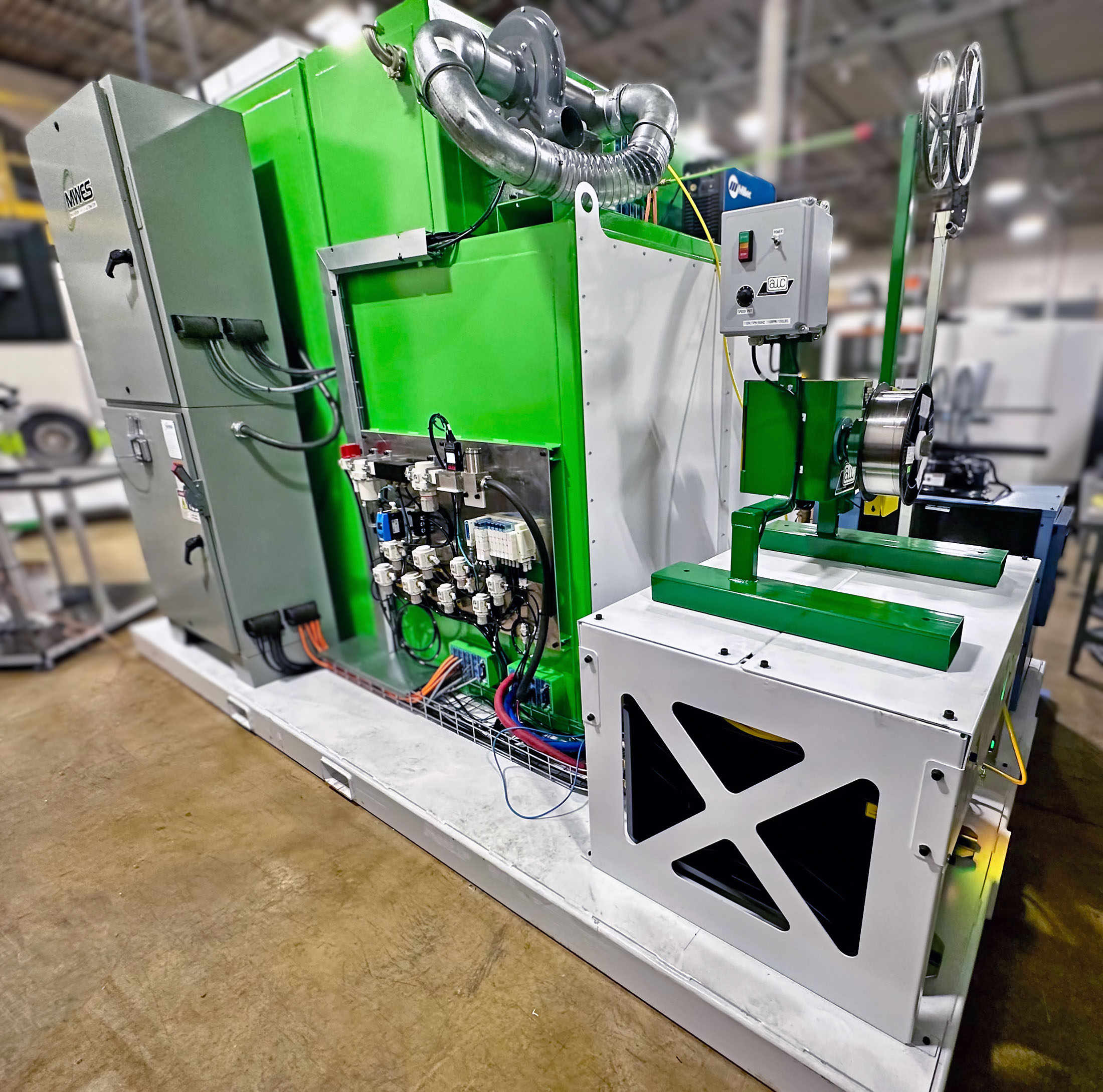

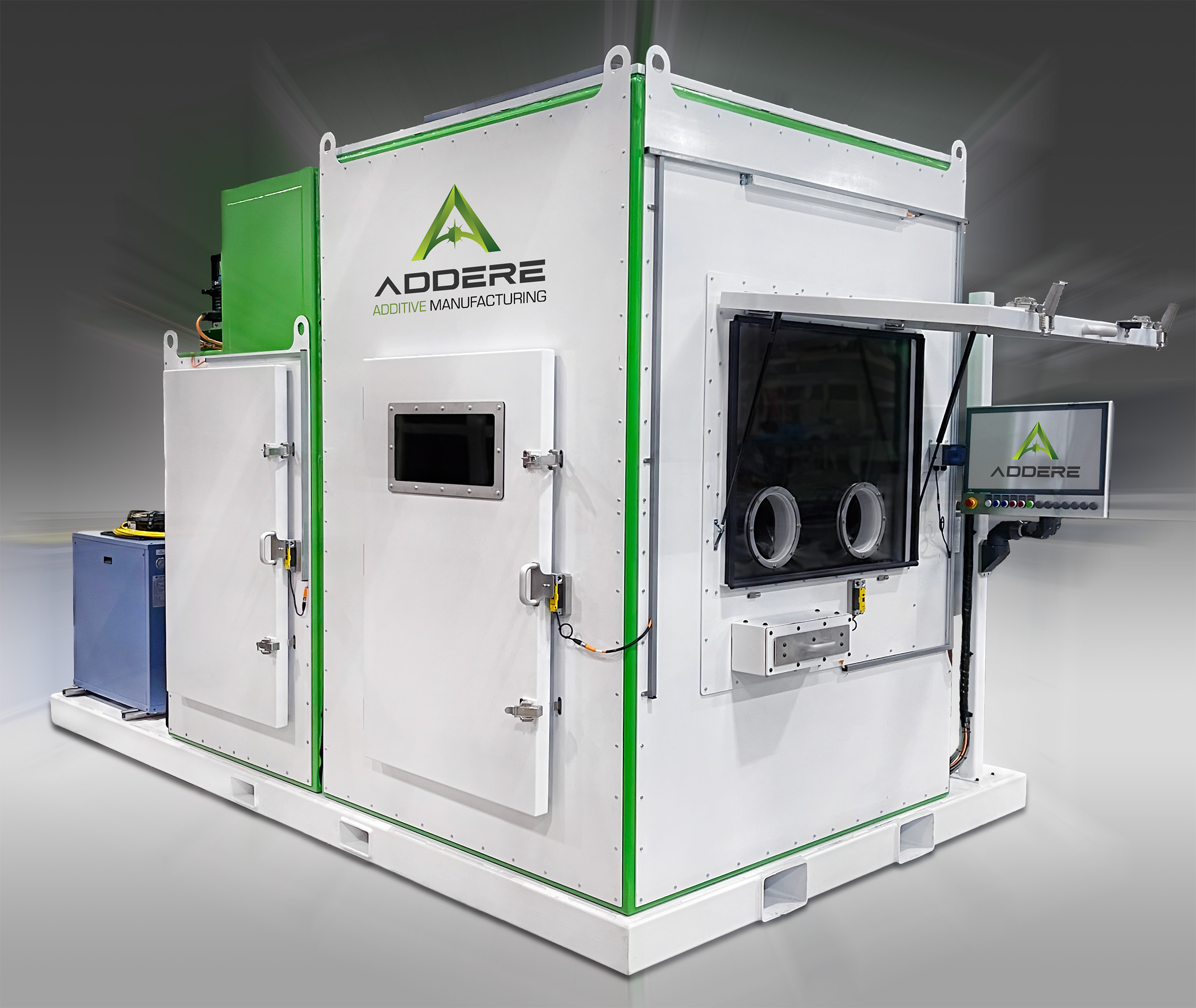

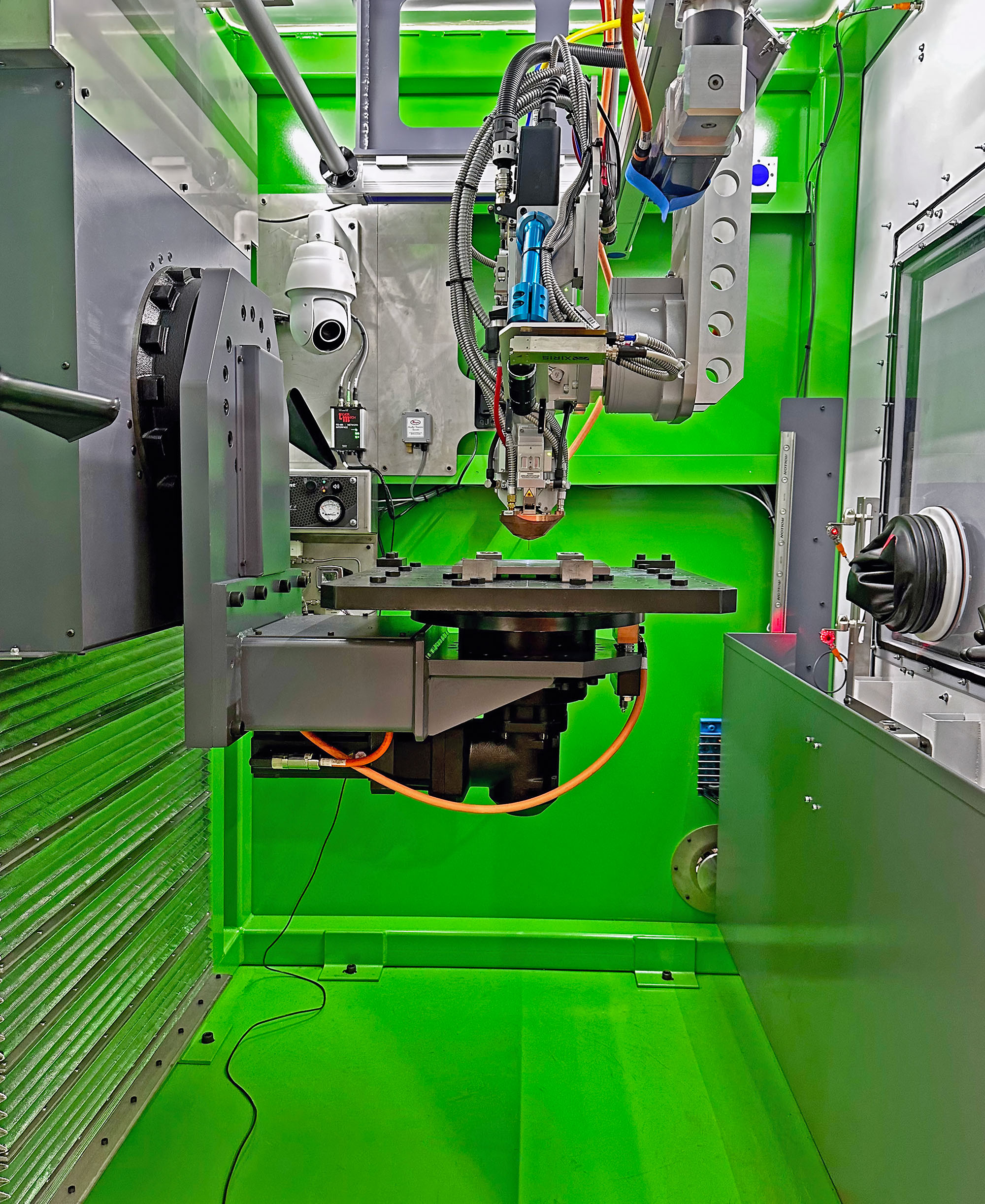

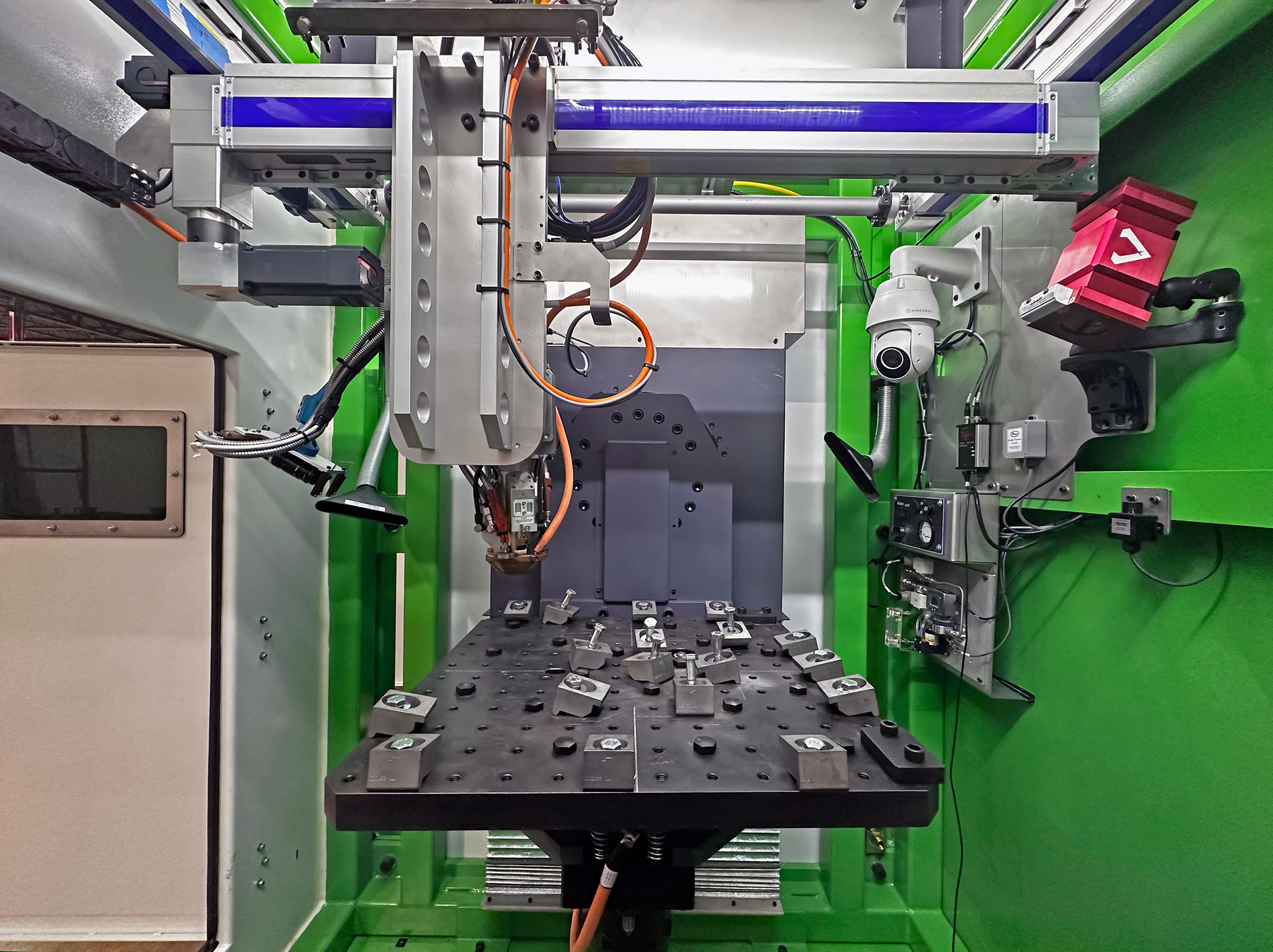

The ADDere Small Format System is housed in a compact portable enclosure with everything required for 3D metal printing on-demand parts. The Small Format System is a laser-wire additive manufacturing (LWAM) system that utilizes a highly accurate 3-axis gantry system that can paired with a 3-axis coordinated motion workpiece positioner.

This turn-key system is capable of building large-scale components at near net shape from many common or specialty metal-based materials such as stainless steel or Inconel. A standard inert argon gas environment allows this system to build parts out of Titanium and a wide range of other superalloys. The 4kW or 8kW coaxial engine laser combined with a 500-amp hot wire delivery package provides plentiful power for depositing material at a large scale. All of these only require 100 KVA to operate making the system easy to set up in different locations.

ADDere uses a real-time sensor system that is key to ADDere’s dimensional performance and quality of metal disposition. With closed-loop sensing and control the ADDere’s systems offer some of the most consistent builds, with excellent metallurgical qualities and near net shaped results that reduce the amount of finishing required for the final product.

Along with the physical system, ADDere also provides the software that drives the entire additive manufacturing process. The ADDere Runtime Software controls the build height and width, the energy density control, head mapping and inter-pass print control, and the deposition rate control.

System Specifications

Motion Device3-Axis Gantry System
6-Axis Motion Control Gantry System
Build Part Size
(L x W x H)
500mm x 500mm x 500mm working envelope
Built Part Max Weight200 kg including fixturing
ADDere Engine4 kW or 8 kW Coaxial Engine Laser
Wall/Layer SizeTypical 5-6mm pass width and 1-2mm layer height
Sensor SystemReal-time, Closed-loop fixed optic with options for coaxial or dithering spot

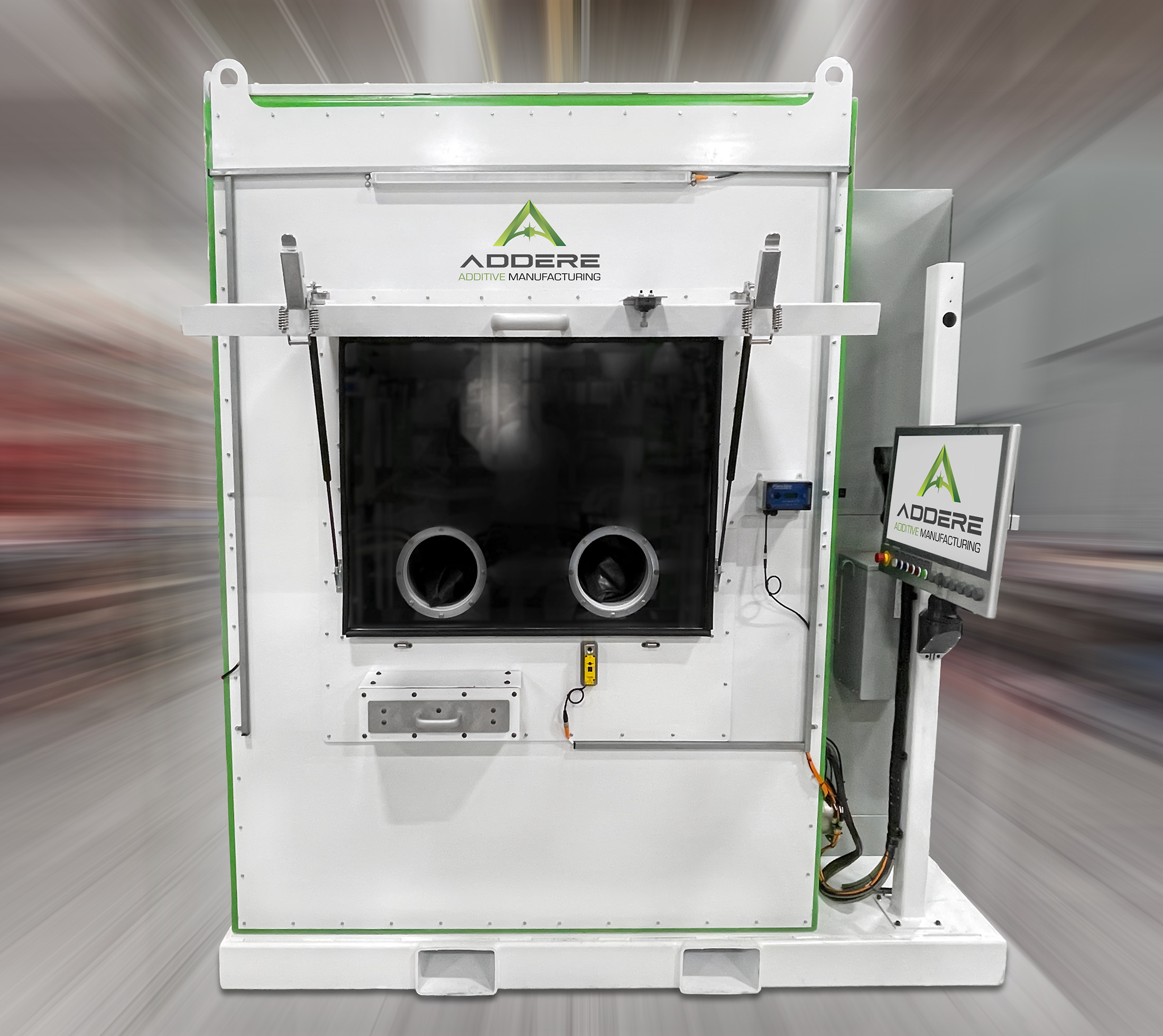

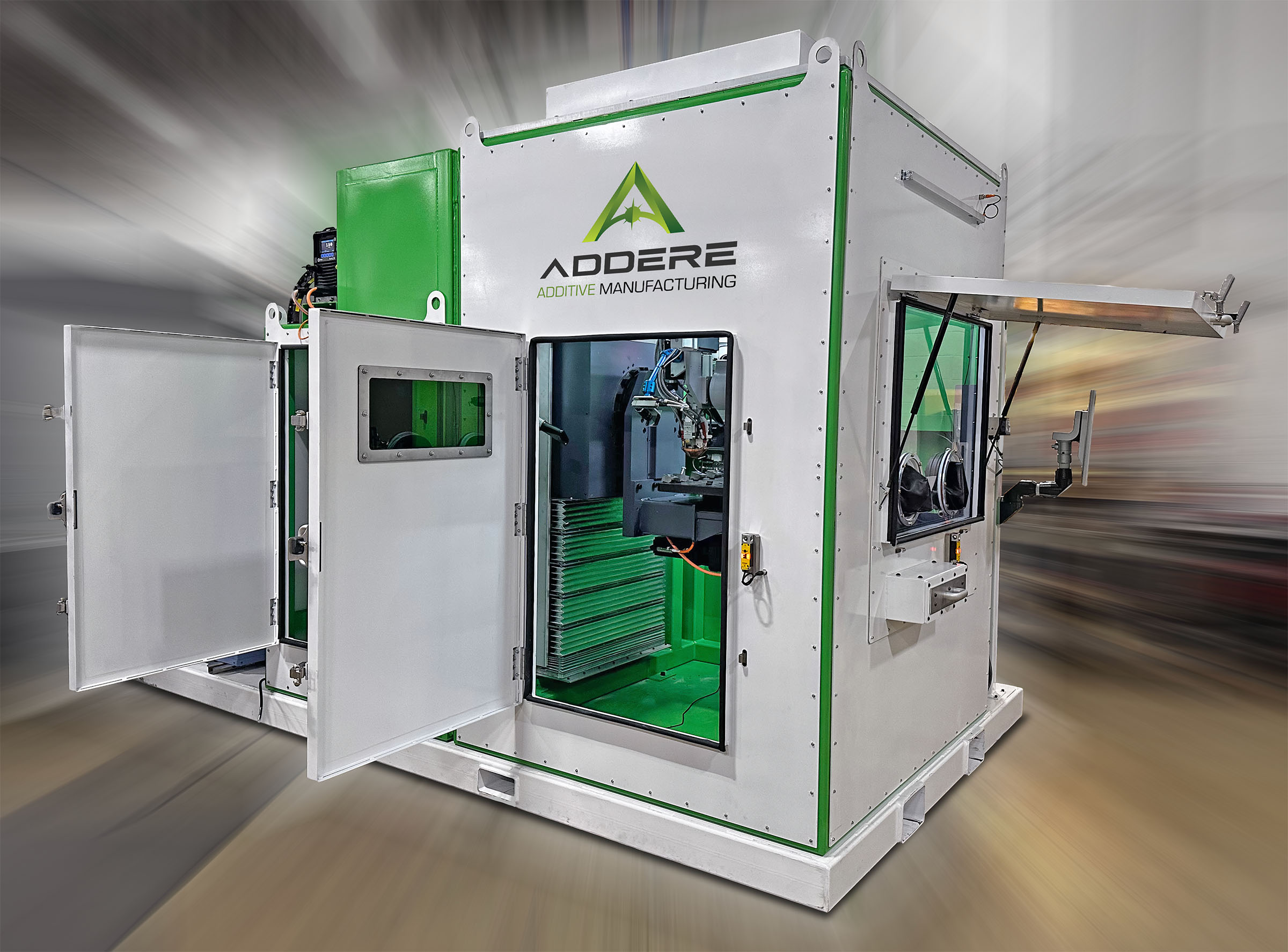

EnclosureFull laser safety enclosure which comes standard with an inert gas environment. Unitized single base for easy transport.

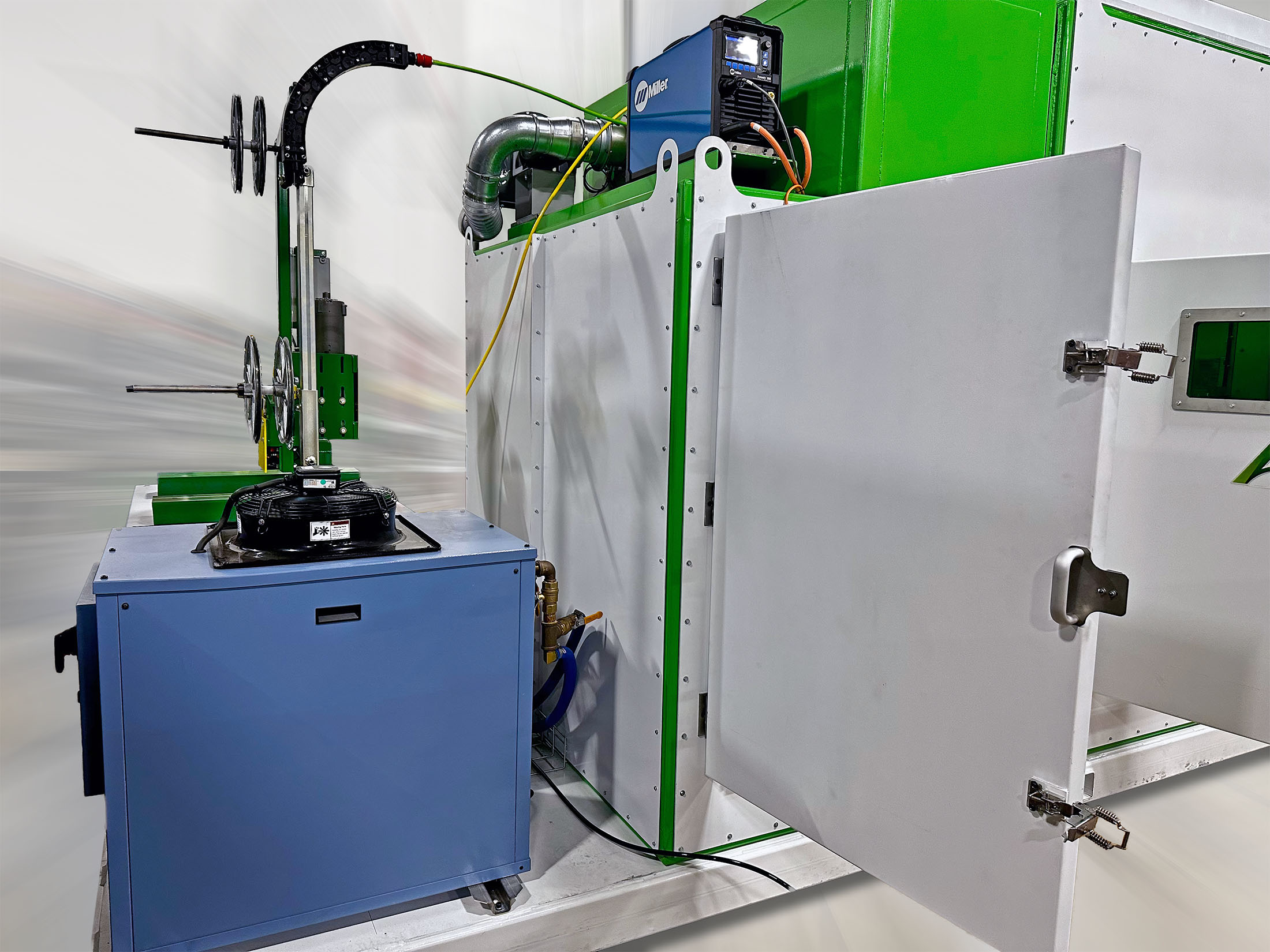

Material Delivery500-amp hot wire system with power source tracked by closed-loop feedback control

If you have any additional questions about the ADDere Systems or which system best fits your additive manufacturing applications, please feel free to reach out to us.

do you want to learn more about ADDere's products and services?

Best-in-class Printing Performance

Sample Parts

Turbine Blade

Highly complex stainless steel part that stands 5ft 11in or 1800 layers tall with a height variant of >0.5mm. Learn more ❯

Deposition rate: 4.5 lbs./h
Build time: 30 hours
Material: Duplex Stainless Steel
Equipment used: ADDere Custom System

Rocket Thrust Chamber Assembly

Highly complex seamless stainless steel part that stands 42in tall with a wall thickness of 3mm. Learn More ❯

Deposition rate: 4 lbs./h
Build time: 20 hours
Material: Duplex Stainless Steel
Equipment used: ADDere Custom System

Duplex Stainless Steel Build Plate

Building upon an already finished build plate.

Deposition rate: 23 lbs./h
Build time: 3+ days
Material: Duplex Stainless Steel
Equipment used: ADDere Custom System

Gear

A solid gear made entirely from stainless steel.

Deposition rate: 20 lbs./h
Build time: 10 hours
Material: Stainless Steel
Equipment used: ADDere Custom System

Freeform Design

A demonstration part with a hollow 6mm wall thickness.

Deposition rate: 4.5 lbs./h
Build time: 20 hours
Material: Stainless Steel
Equipment used: ADDere Custom System

Mold Form

Three-hour 3D laser-wire additive build time reduced subtractive processes. The carbon Steel metal printing process allowed customers to move into production faster and more cost-effectively than conventional processes.

Deposition rate: 6 lbs./h
Build time: 3 hours
Material: Carbon Steel
Equipment used: ADDere Standard System

Propeller

Thin-walled metal components are 3D printed onto the existing part. The ADDere additive manufacturing process allows printing onto components built through other means.

Deposition rate: 3 lbs./h
Build time: 4 hours
Material: Carbon Steel
Equipment used: ADDere Standard System

Wing Spar

High-complexity 3D print in titanium. Cross-section aspects of 3D printing reduce construction times and make for a stronger overall part.

Deposition rate: 6 lbs./h
Build time: 1 hour
Material: Titanium Ti64
Equipment used: ADDere Custom System

Cross-section Build

High-complexity 3D print in titanium. Inner detail work makes for ideal additive printing.

Deposition rate: 6 lbs./h
Build time: 1 hour
Material: Titanium Ti64
Equipment used: ADDere Custom System

Titanium Box

High-complexity 3D print in titanium. Inner detail work makes for ideal additive printing.

Deposition rate: 6 lbs./h
Buidt time: 3 hours
Material: Titanium Ti64
Equipment used: ADDere Custom System

Titanium Solid Bar

A solid bar made entirely from Titanium.

Deposition rate: 7 lbs./h
Build time: 6 hours
Material: Titanium Ti64
Equipment used: ADDere Custom System

Part Cladding

Evaluation of the part cladding process.

Deposition rate: 5 lbs./h
Build time: 2 hours
Material: Titanium Ti64
Equipment used: ADDere Custom System
